New The Builder Package

Specifications

Compare >>> Select up to 2 models to compare specifications

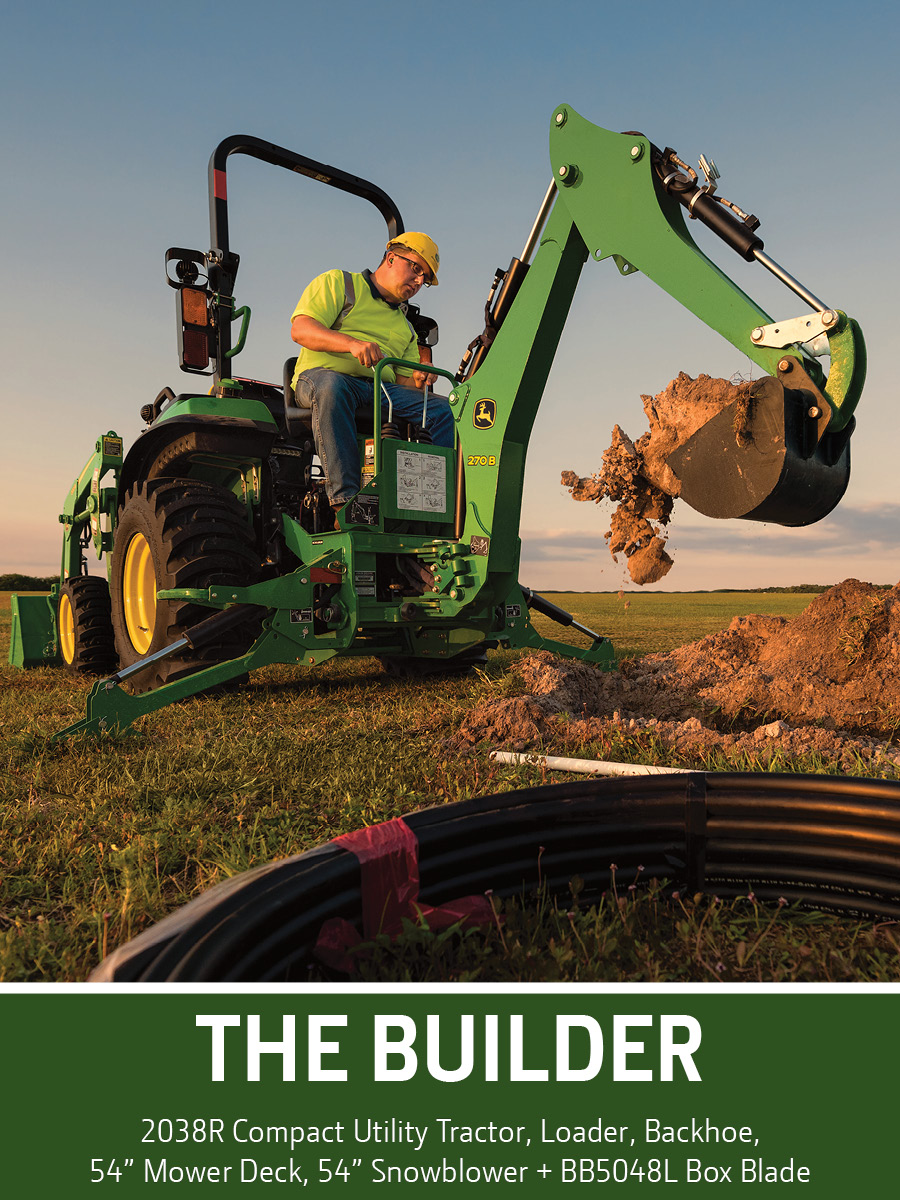

John DeereThe Builder Package

Add Model --Please Select-- 2025R (Model year 2024) 3038E (Model year 2024) 3039R (Model year 2024) B3200 HSD B3350HSD B3350SUHSD

Add Model --Please Select-- 2025R (Model year 2024) 3038E (Model year 2024) 3039R (Model year 2024) B3200 HSD B3350HSD B3350SUHSD

Engine power (gross)	SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm
Power take-off (PTO) power	22.7 kW 30.4 hp
Steering hydraulics	15 L/min 4 gpm
Implement hydraulics	20.2 L/min 5.3 gpm
Hitch type	Category 1
Lift capacity, 24-in. behind link arms	615 kg 1356 lb
Standard transmission; forward/reverse	Hydrostatic transmission (HST)
Cruise control	Standard
Approximate shipping weight (open-station; cab)	Open station: 1320 kg 2910 lb Cab: Not applicable
Wheelbase	1723 mm 67.8 in.

Family
Manufacturer	Yanmar®
Engine model	3TNV88C-NJT
Engine power (gross)	SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm
Power take-off (PTO) power	22.7 kW 30.4 hp
Rated engine speed	2500 rpm
Type	Direct Injection
Injection pump type	Direct Injection
Aspiration	Turbocharged
Emissions compliance	Final Tier 4
Cylinders/displacement	Three cylinders: 1.568 L 95.8 cu in.
Number of cylinders	Three
Cylinder liners	Cast-in-block
Bore and stroke	86x90 mm 3.39x3.54 in.
Compression ratio	19.1:1
Lubrication	Pressurized
Cooling system	Water pump
Air cleaner	Dual element
Engine torque at rated speed	104.7 Nm 77.2 lb-ft
Fuel tank capacity	32 L 8.5 U.S. gal.

Battery size	500 CCA
Alternator (12-V)	85 amp
Starter size	1.4 kW 1.9 hp

Type	Direct Injection
Fuel consumption

Standard transmission; forward/reverse	Hydrostatic transmission (HST)
Optional transmission; forward/reverse
Left-hand reverser
Transmission gear ranges
Final drive	Spur gear
Brakes	Wet disc
Steering	Power steering
Clutch, wet/dry
Clutch disk diameter wet clutch
Axle capacity	Front 880 kg 1940 lb Rear 1800 kg 3968 lb
Creeper	No
Cruise control	Standard
Differential lock	Yes
Drawbar maximum vertical load

Type	Open center
Pump rated output	Steering 15 L/min 4 gpm Implement 20.2 L/min 5.3 gpm 35.2 L/min 9.3 gpm
Pump type	Dual gear
Maximum operating pressure	172 bar 2495 psi
Draft control sensing	Position control
Remote control valves available	Up to three

Type	Category 1
Lift capacity, 24-in. behind link arms	615 kg 1356 lb

Standard	Rear: 543 rpm Mid: 1998 rpm
Optional
Control	Independent
Clutch	Wet disc
Brake (for mid and rear PTO)	Wet disc
Engagement method

Crankcase with filter	4.5 L 4.8 gal.
Transmission and hydraulic system

Type	Spur Gear
Differential lock	Yes

Rollover protective structure	Type Foldable ASABE S478
Platform - flat/straddle	Semi-flat
Gear shift location - console/floor

Compliance
Visibility
Air conditioning, temperature differential
Doors
Noise rating
Seat equipment

Height
Wheelbase	1723 mm 67.8 in.
Front axle clearance
Turning radius with brakes	2.46 m 8.07 ft
Turning radius without brakes
Limited slip differential
Approximate shipping weight (open-station; cab)	Open station: 1320 kg 2910 lb Cab: Not applicable

Front	R1 Ag 7.00-12 R3 Turf 23x8.50-14 R4 Industrial 23x8.50-14 R3 Turf Radial 200/60 R15
Rear	R1 Ag 12.4-16 R3 Turf 14-17.5 R4 Industrial 14-17.5 R3 Turf Radial 300/70 R20
Front tread range
Rear tread spacing

Toolbox	Yes
Tilt steering wheel	Yes
12-V Outlet	Yes
