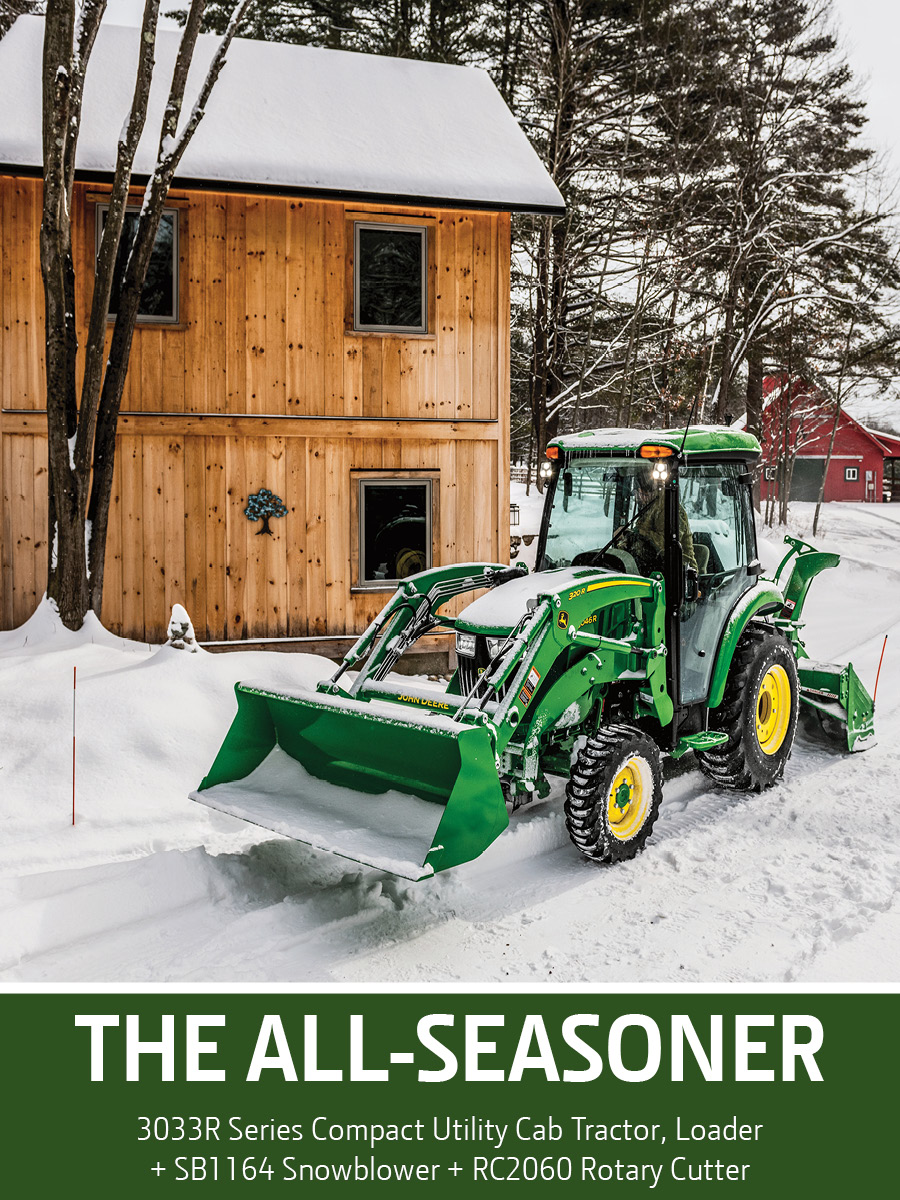

New The All-Seasoner Package

Specifications

Compare >>> Select up to 2 models to compare specifications

John DeereThe All-Seasoner Package

Add Model --Please Select-- 3025D (Model year 2024) 3025E (Model year 2024) 3032E (Model year 2024) 3035D (Model year 2024) 3038E (Model year 2024) 3039R (Model year 2024) 3043D (Model Year 2024) 3046R (Model year 2024) L3560 DT, GST, HST, HSTC New Holland Boomer 37

Add Model --Please Select-- 3025D (Model year 2024) 3025E (Model year 2024) 3032E (Model year 2024) 3035D (Model year 2024) 3038E (Model year 2024) 3039R (Model year 2024) 3043D (Model Year 2024) 3046R (Model year 2024) L3560 DT, GST, HST, HSTC New Holland Boomer 37

Engine power (gross)	SAE J1995 rated power: 23.7 kW 31.8 hp 32.2 PS at 2600 rpm
Power take-off (PTO) power	PowrReverser™ transmission: 19.5 kW 26.1 hp eHydro™ transmission: 17.2 kW 23 hp Per SAE J1995
Steering hydraulics	23.5 L/min 6.2 gpm
Implement hydraulics	34.3 L/min 9.1 gpm
Hitch type	Category 1
Lift capacity, 24-in. behind link arms	995 kg 2194 lb
Standard transmission; forward/reverse	PowrReverser transmission
Cruise control	PowrReverser transmission: Not applicable eHydro transmission: Standard
Approximate shipping weight (open-station; cab)	Open operator station (OOS): 1353 kg 2983 lb Cab: 1633 kg 3600 lb
Wheelbase	1727 mm 68 in.

Family
Manufacturer	Yanmar®
Engine model	3TNV88C-MJTV
Engine power (gross)	SAE J1995 rated power: 23.7 kW 31.8 hp 32.2 PS at 2600 rpm
Power take-off (PTO) power	PowrReverser transmission: 19.5 kW 26.1 hp eHydro transmission: 17.2 kW 23 hp
Rated engine speed	2600 rpm
Type	Diesel
Injection pump type	High pressure common rail direct injection
Aspiration	Natural
Emissions compliance	Final Tier 4
Cylinders/displacement	Three cylinders: 1.64 L 100 cu in.
Number of cylinders	Three
Cylinder liners	Cast-in-block
Bore and stroke	88x90 mm 3.46x3.54 in.
Compression ratio	19.1:1
Lubrication	Pressurized
Cooling system	Liquid
Air cleaner	Dual element
Engine torque at rated speed	87 Nm 64.2 lb-ft
Fuel tank capacity	OOS: 37.4 L 10 U.S. gal. Cab eHydro transmission only: 47.6 L 12.6 U.S. gal.

Battery size	500 CCA
Alternator (12-V)	75 amp
Starter size	1.4 kW 1.9 hp

Type	High pressure common rail direct injection
Fuel consumption

Standard transmission; forward/reverse	PowrReverser transmission; 12F/12R
Optional transmission; forward/reverse	eHydro transmission
Left-hand reverser	PowrReverser transmission only
Transmission gear ranges	PowrReverser transmission: 12F/12R eHydro transmission: three-range, infinitely variable
Final drive	Spur gear
Brakes	Multi-plate wet disk
Steering	Hydrostatic power steering
Clutch, wet/dry	PowrReverser transmission: Wet disk
Clutch disk diameter wet clutch
Axle capacity	Front 1450 kg 3197 lb Rear 1850 kg 4079 lb
Creeper
Cruise control	PowrReverser transmission: Not applicable eHydro transmission: Standard
Differential lock	Yes
Drawbar maximum vertical load

Type	Open center
Pump rated output	Steering 23.5 L/min 6.2 gpm Implement 34.28 L/min 9.1 gpm 57.8 L/min 15.3 gpm
Pump type	Single gear
Maximum operating pressure	172 bar 2495 psi
Draft control sensing	Position control
Remote control valves available	Up to six rear remotes

Type	Category 1
Lift capacity, 24-in. behind link arms	995 kg 2194 lb

Standard	Independent rear: 540 rpm
Optional	PowrReverser transmission: Mid - not applicable eHydro transmission: Mid - 2100 rpm
Control	Lever and switch
Clutch	Wet disk
Brake (for mid and rear PTO)	Wet disk
Engagement method

Crankcase with filter	4.3 L 4.5 gal.
Transmission and hydraulic system	PowrReverser transmission: 24.6 L 6.5 U.S. gal. eHydro transmission: 26.5 L 7 gal. Cab eHydro transmission only: 26.5 L

Type	Spur gear
Differential lock

Rollover protective structure	Type Foldable
Platform - flat/straddle	One-piece semi flat
Gear shift location - console/floor	PowrReverser transmission: Right-hand side eHydro transmission: Not applicable

Compliance	Complies with OSHA, SAE, and CSA standards for rollover protection
Visibility	360 degree (angle)
Air conditioning, temperature differential
Doors	Two
Noise rating	80 dBA
Seat equipment	Scissor-link

Height
Wheelbase	1727 mile 68 in.
Front axle clearance	Minimum: 171 mm 6.7 in. Maximum: 299 mm 11.8 in.
Turning radius with brakes	2.7 m 8.8 ft
Turning radius without brakes	2.8 m 9.2
Limited slip differential
Approximate shipping weight (open-station; cab)	OOS: 1353 kg 2983 lb Cab: 1633 kg 3600 lb

Front	R1 Bar: 7-14 R3 Turf : 27x8.50-15 R3 Turf Special: 25/10.5LLx15 R4 Industrial: 25x8.5-14 or 27x8.5-15
Rear	R1 Bar: 11.2-24 R3 Turf: 41x14-20 R3 Turf Special: 41x18LL-16.1 R4 Industrial: 15-19.5 or 43x16-20
Front tread range	1117 mm 44 in.
Rear tread spacing	1031 mm 40.6 in.

Toolbox
Tilt steering wheel
12-V Outlet
