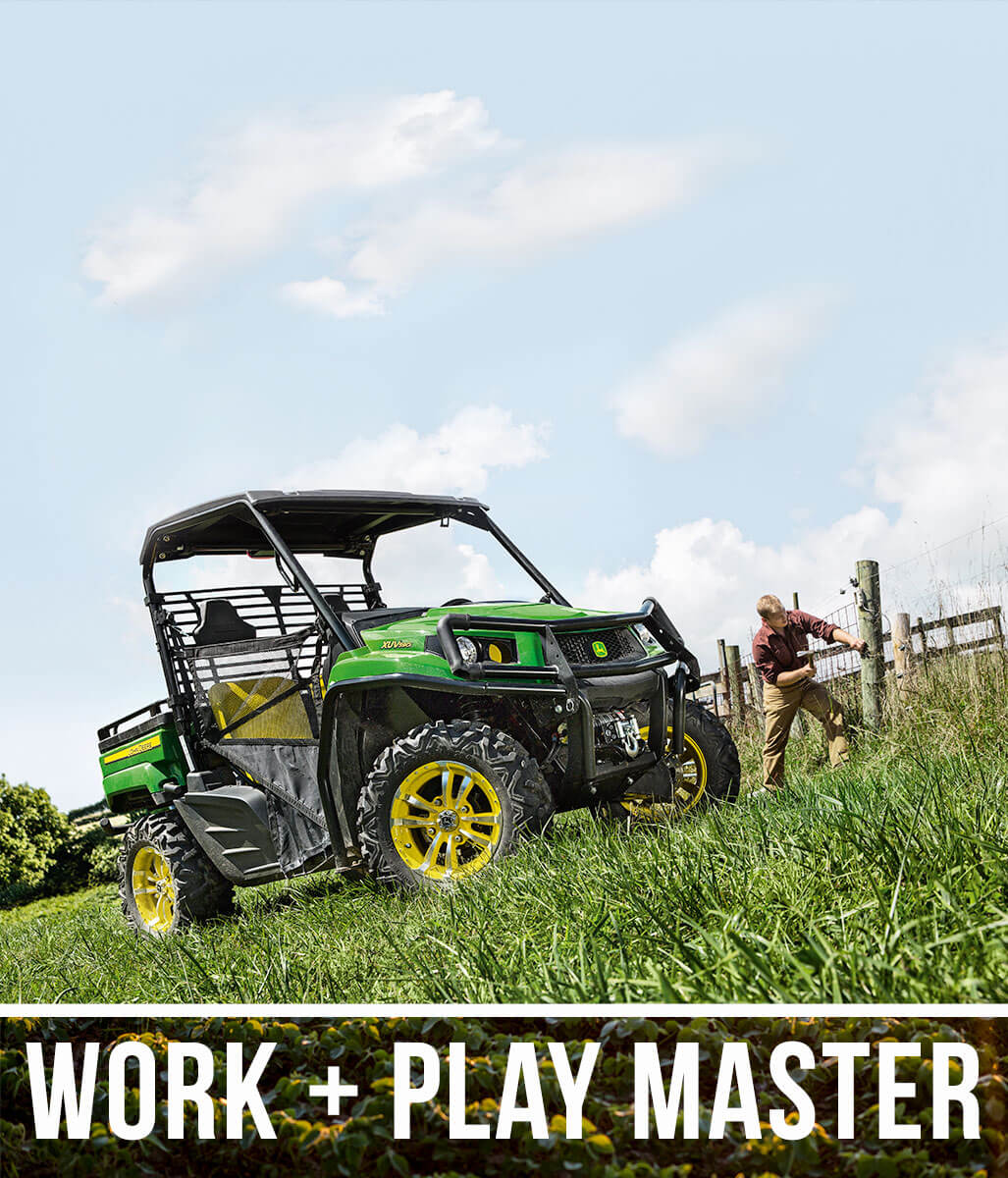

New The Work + Play Master Gator Package

Specifications

Engine power	23.8 kW 32 hp
Cargo box dimensions	820 x 1209 x 297 mm 32.3 x 47.6 x 11.7 in.
Cargo box capacity (weight)	227 kg 500 lb
Towing capacity	680 kg 1500 lb
Front suspension	Fully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar
Rear suspension	Fully independent with lower A-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel
Final drive	Park, high, low, neutral, reverse transaxle
Four wheel drive	Dash switch actuated four-wheel drive system
Fuel capacity	28 L 7.4 U.S. gal.

Type	4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV)
Displacement	586 cc
Power	23.8 kW 32 hp
Cooling system	Liquid cooled

Transmission	Continuously Variable Transmission (CVT) with clutch enclosure
Final drive	Park, high, low, neutral, reverse transaxle
Four wheel drive	Dash switch actuated four-wheel drive system
Traction assist	Limited slip front differential, Positive locking, switch actuated rear differential lock
Descent control	No

Front	Fully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar
Rear	Fully independent with lower A-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel

Type	196 mm (7.7 in.) ventilated four-wheel stainless-steel disc brakes with 34.93 mm (1.375 in.) diameter hydraulic twin-piston calipers
Park brake	Park in-transmission

Front	25x8-12 Terra Hawk all-terrain on steel wheels 26x8-14 Maxxis® Bighorn® 2.0 extreme terrain on steel or alloy wheels
Rear	25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels, various colors or 26x10-14 Maxxis Bighorn 2.0 6-ply rating aluminum alloy wheels, various colors or 26x10-14 Maxxis Bighorn 2.0 6-ply rating steel wheels, various colors

Wheelbase	1.86 m 72.8 in.
Weight	With fuel and fluids: 676 kg 1491 lb
Length	2870 mm 113 in.
Width	1435 mm 56.5 in.
Height	1867 mm 73.5 in.
Tread centers	Front: 1220 mm 48 in. Rear: 1168 mm 46 in.
Ground clearance	Minimum: 267 mm 10.5 in.
Fuel capacity	28 L 7.4 U.S. gal.
Cargo box dimensions	820 x 1209 x 297 mm 32.3 x 47.6 x 11.7 in.
Cargo box capacity (weight)	227 kg 500 lb
Payload capacity	408 kg 900 lb
Towing capacity	680 kg 1500 lb
Hitch	Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops

Color	Green/yellow, olive/black, or TRUETIMBER® Kanati camo
Power steering	Standard
Battery / Alternator / Power port	Battery: 12 V 340 CCA Alternator: 65 amp DC outlet: 12 V
Instrumentation	Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
Storage	Two cupholders, sealed underhood storage, glove box
Seating	Black vinyl bench

Country of Manufacture	U.S.
Date collected	8-Jun-22
